The ideal secure evidence storage solution for your digital forensic lab!
Mission Darkness™ Blocker Locker 7
The Mission Darkness™ Blocker Locker 7™ system solves multiple problems for forensics investigators and labs. To effectively access and recover data from cell phones and tablets, the latest forensic tools require devices to stay live. It can be difficult to keep devices shielded from RF signals, charged at all times, and securely locked. The Blocker Locker 7 accomplishes all of these objectives in a single cabinet designed specifically for shielding, charging, and locking. The unit includes seven fully loaded compartments equipped with Window Charge & Shield Faraday Bags for Phones, while additional Charge & Shield Faraday Bags can be purchased as required or to increase capacity.
The charging feature is designed to prevent lockout mode and reduce the amount of time needed to break a passcode, enabling the maximum amount of data extraction and unlocking with tools like GrayKey, Cellebrite, Magnet, XRY, BlackBag, Oxygen, etc.
To extract data from a device in the Blocker Locker 7, simply unlock the individual compartment, disconnect the power cable, remove the Charge & Shield Faraday Bag, and transfer it into a forensic faraday box. The bag can be easily opened inside the box (the magnetic NeoLok™ closure reduces faraday glove abrasion) while the device is passed into the shielded enclosure. Shielding and power are never compromised, providing a seamless process for investigators.
Secure cabinet with seven locker compartments designed specifically for forensic investigators to keep devices individually locked, shielded, and charged during storage
Primarily used as an evidence locker for cell phones and tablets
System ensures that device intake and storage is correct so that the passcode unlocking and data extraction process can be completed properly with the best results
Each cabinet has a power outlet with two USB power receptacles and a unique outer lock
Locking system consists of two keys for each locker compartment, two master keys, and a key dropbox
Power indicator light on main cabinet
Basic usage instructions sticker printed on the locker itself (additional in-depth instruction sheet included)
Includes seven Mission Darkness Window Charge & Shield Faraday Bags for Phones plus all necessary charging components and cable tips (one bag stationed in each locker compartment)
Window Charge & Shield Faraday Bags are uniquely designed for charging devices in the Blocker Locker 7, then being transferred to a faraday forensic box
The system allows devices to remain live and uncorrupted after seizure, until they can be interrogated or have data extracted at a later time
Window Charge & Shield Faraday Bags block WiFi (2.4 & 5GHz), Bluetooth, cell signals including 5G networks, GPS, RFID, and radio signals with 90dB average attenuation from low MHz all the way up to 40GHz
Single locker compartment interior dimensions: 13″ x 18″ x 4.5″
Cabinet exterior dimensions: 15″ x 18″ x 34″
Cabinet weight: 85lbs
Lock, Shield, Charge, and Extract Data from Devices
The complete Blocker Locker 7 – Charge & Shield Evidence Cabinet system is primarily used with digital forensics evidence items such as cell phones, tablets, GPS trackers, and similar electronics. The dual sided USB filter in each Window Charge & Shield Faraday Bag allows the user to easily switch from power to extraction tool when needed.
Purchase Additional Charge & Shield Faraday Bags to Increase Capacity
The Blocker Locker 7 comes with seven Window Charge & Shield Faraday Bags for Phones plus all necessary charging components. The bag can be transferred from the locker to the lab without compromising RF shielding. Up to two Charge & Shield Faraday Bags can fit in each locker compartment. Purchase additional Charge & Shield Faraday Bags to support more than seven devices in the cabinet. Available in phone or tablet size, window or non-window style (*window style bags are preferred for use with the Blocker Locker). Additional add-on options are listed below. Let us know your requirements so that we can quote you accordingly.
Each Window Charge & Shield Faraday Bag Includes
Charge & Shield Faraday Bag with transparent window, dual sided USB filter, NeoLok magnetic closure, serial number, card pocket, and zipper compartment on back to hold cables
Shielded USB A/M to A/M cable (1 meter)
Charging cables: lightning, micro USB, USB-C, and USB extension
Optional short term charging add-ons such as a dual USB port car charger adapter, dual USB port wall charger, and power banks
Product No: AP-MD-LOCKER7

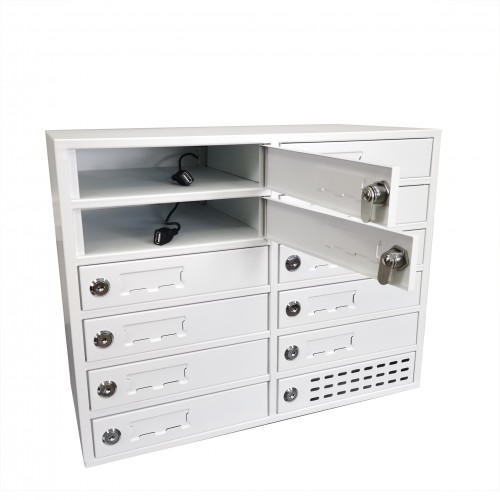

12 Bay Charging Locker
Digital forensic investigators are able to keep their devices secure while providing electrical power until an forensic examination can be conducted. The lockers are outfitted with door locks to keep tablets and mobile phones protected and organized in one location.
Constructed entirely of steel metal with white coating, These lockers can accommodate cell phones, iPads, wallets, keys, cameras, tablet PC’s and other small items.
12 compartments, 12 unique locks (11 Charge).
Locks come with unique keys for users’ privacy. Each slot’s lock comes with two identical keys. Two master keys are provided. Master keys can access any locker.
The Mission Darkness™ RF Shielded Phone & Tablet Locker is a heavy duty metal cabinet system with 24 individually shielded lockable compartments. It is specifically designed for shielding portable electronic devices from RF (radio frequency) signals, while securely locked inside. Each compartment is an independent fully enclosed metal box, meaning that when one locker door is opened, it only introduces signals into that single compartment; the rest of the compartments continue to isolate and secure devices inside. The separation of compartments also eliminates the chance of the entire shielding system failing due to a single weak point.
Military-grade metal locker system with 24 faraday chamber compartments specifically designed for shielding cell phones and tablets from RF signals
Blocks WiFi (2.4 & 5GHz), Bluetooth, cell signals (including 5G), GPS, RFID, and radio signals with 70dB average attenuation
Heavy duty metal frame with individually shielded compartments
20 cell phone compartments and 4 tablet compartments
Keyed cam lock on each compartment with 2 individual keys per compartment (numbered 1-24), plus 18 master keys
Double gasket compartment shielding system for shielding redundancy
The Mission Darkness™ Forensic Crack Cabinet system solves multiple problems for forensics investigators and labs. To effectively access and recover data from cell phones and tablets, the latest forensic tools require devices to stay live up to the point of password/passcode unlocking and data extraction. It often takes months for passcodes to be “cracked” or for device analysis to occur. This cabinet keeps devices charged, cooled, physically organized, and securely locked throughout this pre-analysis waiting stage and thereafter. The charging feature is designed to prevent lockout mode, reduce the amount of time needed to break a passcode, and keep the device charged while high-powered processing occurs, enabling the maximum amount of data extraction and unlocking.
It includes fully equipped compartments with all necessary charging components to charge up to 18 or 30 devices at the same time (charging capacity depends on product variation selected). The compartments are spacious enough to store multiple devices, plus associated paperwork/case files. Each cable set includes USB A/M to A/M extension cables plus a variety of popular cable tips: lightning, micro USB, and USB-C. Easily change cable tips inside the compartment to connect to the compatible device. Each shelf compartment can accommodate multiple devices and cable sets; the user can rearrange cables however necessary to fit various sized devices. Unused cables can be stored in the bottom accessory compartment. A Noctua fan cooling system consists of eight NF-P12 redux-1700 PWM fans lining both side walls plus a NA-FC1 controller to equalize air flow and device temperature (to prevent overheating from high-power processor speeds).
The complete system ensures that device organization, visibility, and power are never compromised, providing a seamless process for forensic investigators.
Cabinet with eight compartments designed for forensic investigators to keep mobile devices charged indefinitely, cooled, physically organized, securely locked, and visible
Streamlines processes related to passcode unlocking and data extraction with tools like GrayKey, Cellebrite, Magnet, XRY, BlackBag, Oxygen, etc.
Separate compartments accommodate devices such as cell phones and tablets, plus associated paperwork/case files
3 USB power hubs to support up to 18 devices or 6 hubs to support up to 30 devices.
Each device charing set includes a USB A/M to A/M extension cable plus a lightning, micro USB, and USB-C cable tip (choose between the 18 or 30 device capacity set)
Durable cabinet frame with 5mm thick transparent acrylic walls and shelves allow the user to view contents inside and device screens
Bottom shelf is intended for storing extra cable components
Master power switch to cycle power for all devices, to instantly display if device passcodes have been cracked
Power indicator light on main cabinet plus individual USB extension cable connections
Noctua fan cooling system with eight NF-P12 redux-1700 PWM fans and a NA-FC1 controller to equalize device temperature and heat generated from high-power processor speeds
Lock on cabinet door to keep devices and documents secure – includes two keys
Unique serial number for asset management
Easy cable management and usage steps
Power failure detector sends SMS and/or email if power in the unit is lost
110v – 240v power support
Designed and assembled in USA
Dimensions & Weight
Single compartment interior dimensions: 16″W x 12.4″D x 4″H
Cabinet exterior dimensions: 16″W x 12.4″D x 31.4″H
Cabinet shipping dimensions (ships on a pallet): 48″W x 40″D x 26″H
Cabinet shipping weight: 95lbs
The product is offered in two variations; the only difference being the charging capacity and quantity of charging cables included. Purchase multiple Forensic Crack Cabinets if your lab has an abundance of devices requiring indefinite power (more than 30).
